DRIP IRRIGATION SYSTEM

drip india

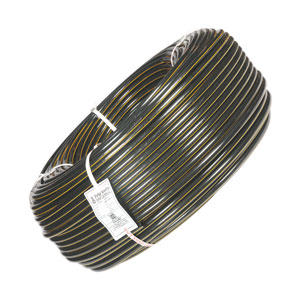

EMMITING PIPE (INTEGRAL DRIP LINE) HYDROGOL

Size Discharge Thickness Dripper Spacing
12mm 2/4 Lph 0.5mm, 0.7mm 30cm To 120cm
16mm 2/4 Lph 0.6mm, 0.8mm 30cm To 120cm
20mm 2/4 Lph 0.8mm 30cm To 120cm
drip india

EMMITING PIPE (INTEGRAL DRIP LINE) FLAT DRIP

Size Discharge Thickness Dripper Spacing
12mm 2/4 Lph 0.5mm, 0.7mm 30cm To 120cm
16mm 2/4 Lph 0.2mm, 0.25mm, 0.3mm 0.6mm, 0.8mm 30cm To 120cm
20mm 2/4 Lph 0.8mm 30cm To 120cm
drip india

LLDPE PLAIN LATERAL

Size Thickness
12mm 1.1mm
16mm 1.2mm
20mm 1.1mm
32mm 2.2mm
drip india

DRIPPERS

Discharge
4 LPH
8 LPH
14 LPH
drip india

FILTER SCREEN METAL (ALSO AVAILABLE IN PLASTIC BODY)

Inlet / Outlet Max. Working Pressure Range Of Flow Filteration Surface Area
2” 8kg/cm2 20m3/hr 492 Cm2
2.5” 8kg/cm2 30m3/hr 492 Cm2
3” 8kg/cm2 40m3/hr 1193 Cm2
drip india

FILTER DISC PLASTIC

Inlet / Outlet Max. Working Pressure Range Of Flow Filteration Surface Area
2” 8kg/cm2 20m3/hr 878 Cm2
2.5” 8kg/cm2 30m3/hr 878 Cm2
3” 8kg/cm2 40m3/hr 1193 Cm2
drip india

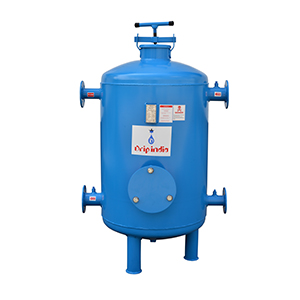

SAND SEPRATOR / FILTER

Inlet / Outlet Range Of Flow
2” 20m3/hr
2.5” 30m3/hr
3” 40m3/hr
3” 50m3/hr
drip india

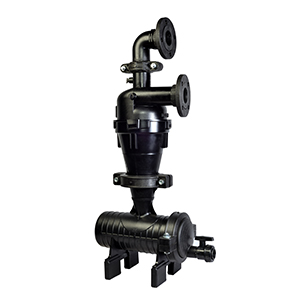

HYDROCYCLONE FILTER

Inlet / Outlet Range Of Flow
2” 20m3/hr
2.5” 30m3/hr
3” 50m3/hr
drip india

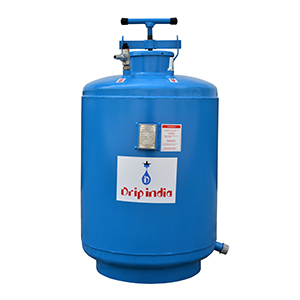

FERTILIZER TANK

capacity
30 Ltr
60 Ltr
90 Ltr
120 Ltr
drip india

VENTURY INJECTOR

Size Inlet Pressure Motive Flow L/h Water Suction L/h
¾” 2 1355 111
1” 2 4290 219
1.5” 2 6590 650
2” 2 6590 670
drip india

SINGLE UNION PVC BALL VALVES

size
2”
2.5”
3”
4”
drip india

ACCESORIES

size
12mm : Nepple, End Cap, Jointer, Grommate, Lateral Cock
16mm : Nepple, End Cap, Jointer, Grommate, Lateral Cock
20mm : Nepple, End Cap, Jointer, Grommate, Lateral Cock
